Product Details

CPB–3080A USA

(6 bands)

CPB–3080E Eur

4G (6 bands)

CPB–3080GL Lojack

 GPS (6 bands)

CPB–3080VU

VHF UHF (6 bands)

850-895MHz 25W 920-960MHz: 25W

GSM900

920-965MHz: 25W

(850-895MHz 25W)

920-965MHz: 25W

(850-895MHz 25W)

1800-2000MHz

20 W

1800-1880MHz 20 W PCS GSM 1800 1800-1880MHz:20W

(1920-1990MHz 20W)

1800-1880MHz:20W

(1920-1990MHz 20W)

2100-2170MHz

30 W 3G UMTS

2100-2170MHz 30 W

3G UMTS

2100-2170MHz 30W

3G UMTS

2100-2170MHz 30W

3G UMTS

700-800MHz:15W

iPhone (AT&T & Verizon)

2620-2690MHz:20W

4G LTE High

2620-2690MHz: 20W

4G LTE High

2620-2690MHz:20W

4G LTE High

2500-2700MHz:20W

4G WiMax Sprint+WiFi

790-870MHz:20W

4G LTE Low

173MHz:30W

LoJack 173

130-180MHz: 20W

VHF Walkie Talkie

2400-2500MHz:20W

WiFi 11.b,g & Buletooth

2400-2500MHz: 20W

WiFi 11.b, g

GPS L1 1575MH: 40W

(1520-1670MHz: 40W)

420-480MHz: 20W

UHF Walkie Talkie

Total :  130W Total : 135 W Total : 165 W Total : 135 W
Option: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W,

4G 2620-2690MHz: 20W,  LoJack 173MHz: 30W, 4G LTE USA Iphone 700-800MHz: 15W

Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)

100% Safe VSWR over protection (Isolator) for each modular

Option: Remote Control 10-30m

Power supply: AC110 or 220-240V /DC 27V
Jamming Range Radius 100~300 meters (-75dBm@Omnidirectional antennas)
Weight 19 Kg
Dimension: 470 x 380 x 290mm
Working time: Without the time limit, May continue to work,

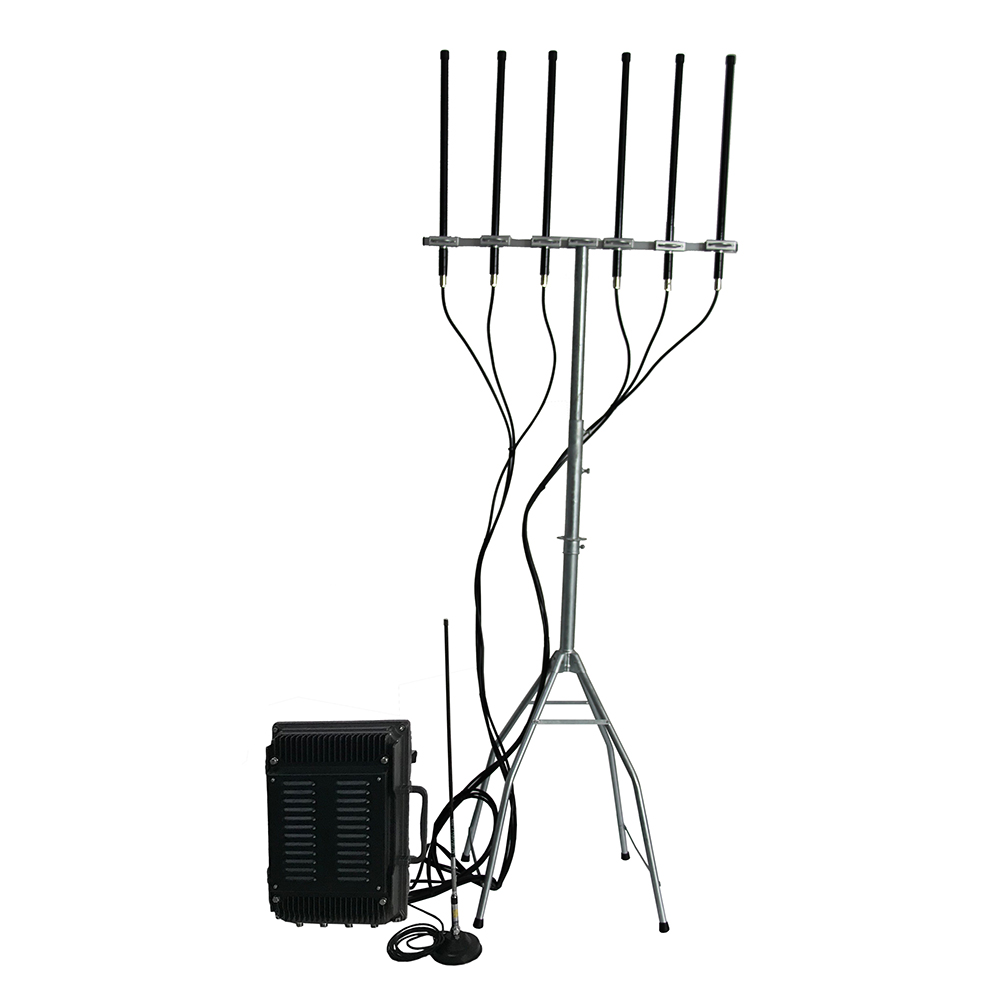

Antenna External Omni 500mm long or Directional Patch Panel Antennas
Warranty: 1 year

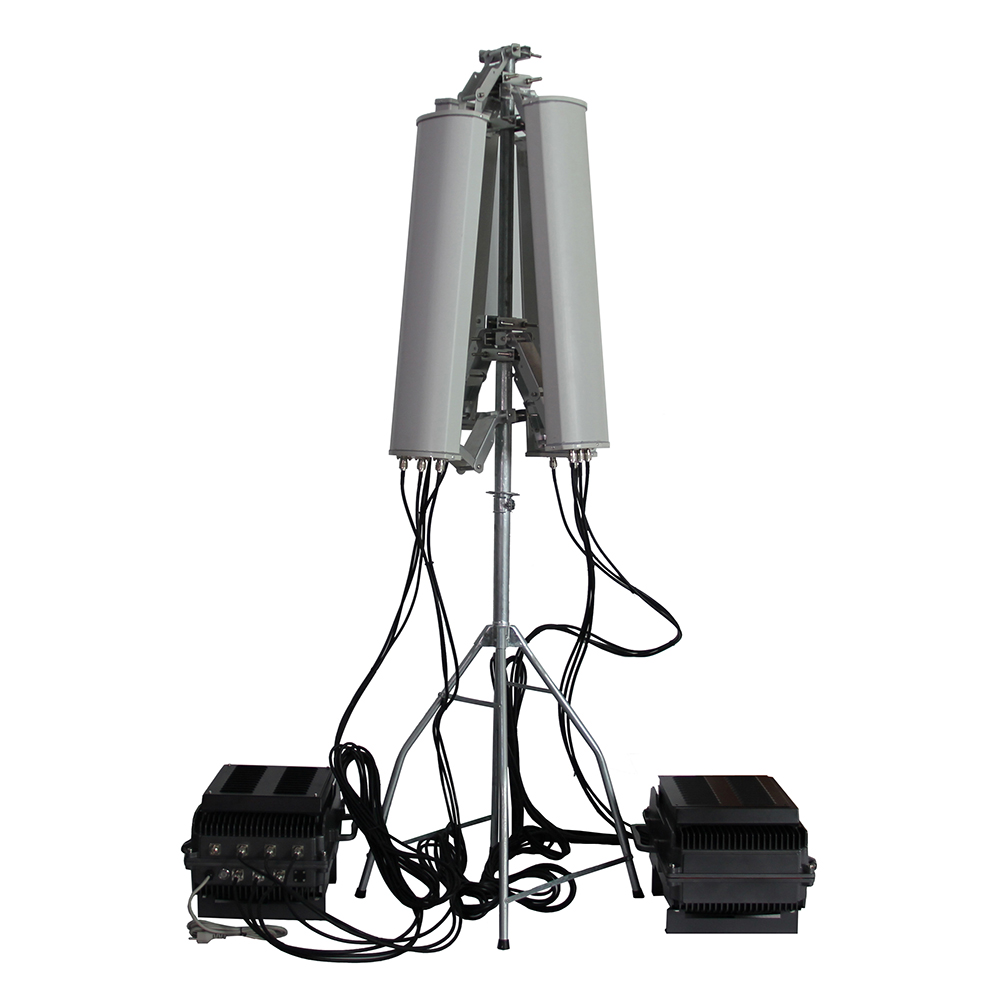

HIGHER GAIN DIRECTIONAL ANTENNA TWO BANDS IN ONE ANTENNA

ELECTRICAL SPECIFICATIONS

Frequency Range————————-     700-965/1710-2700MHz

Impedance———————————-     50 Ohm

VSWR—————————————-     ≤1.5

Gain——————————————-     (700-965):2×10dBi  (1710-2700):2×12dBi

Front to Back Ratio———————–     >25dB

Polarization———————————      ±45°

Horizontal 3dB Beam Width————     (806-960):65°  (1710-2500):65°

Vertical 3dB Beam Width—————      (806-960):50°  (1710-2500):30°

Maximum Input Power——————-     200W

Lighting Protection————————     Direct Ground

Connector Place—————————     Bottom

Connector———————————–     N-Female

MECHANICAL SPECIFICATIONS

Dimensions(L/W/D)————————-     680*280*80mm

Weight——————————————     6kg

Rated Wind Velocity————————     60m/s

Operating Temperature——————–     -40℃-60℃

Mounting Hardware————————-     Ø40-Ø75mm

Radiating Element Material—————     Zinc  Alloy、Aluminum Alloy

Reflector Material—————————      Aluminum Alloy

Radome Material—————————-      PVC

Radome Color——————————–     Gray

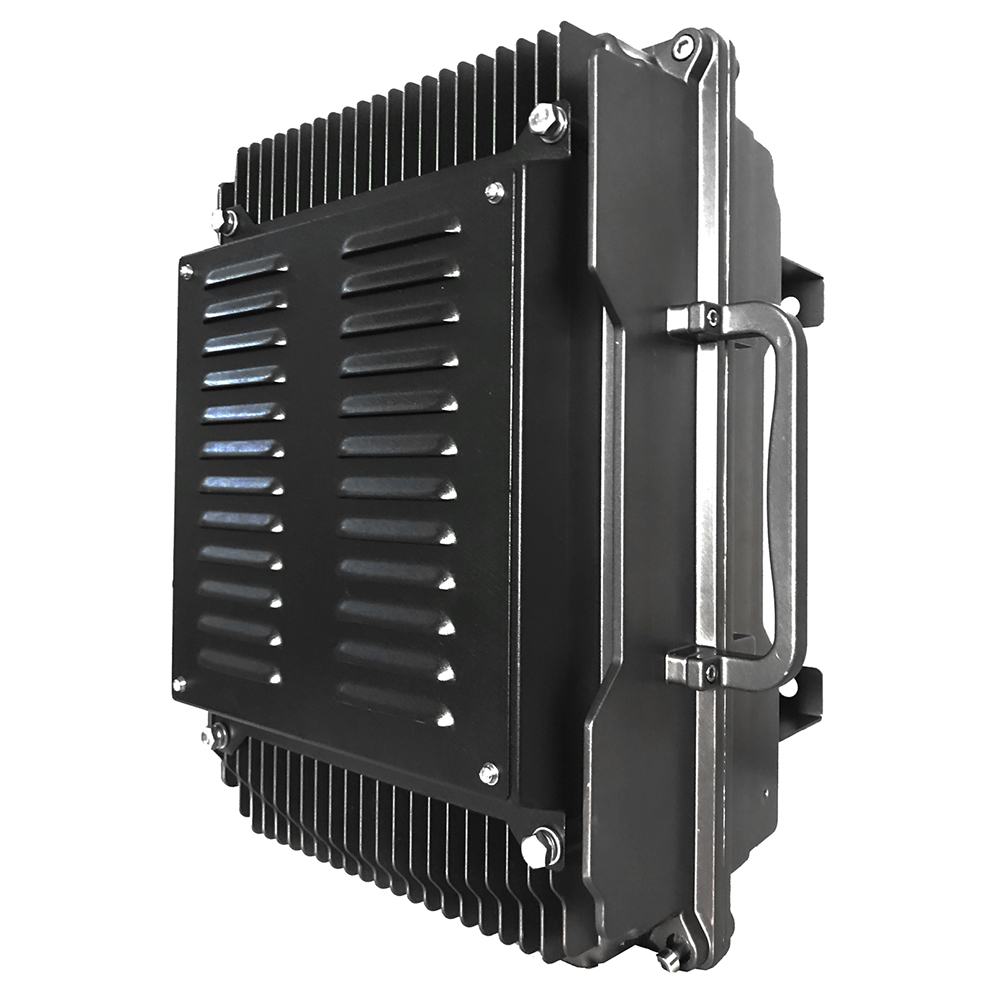

Techwise CPB-3080-HGA 6 Bands 135W 4G Mobile Phone + WiFi Waterproof GPS Outdoor Jammer

Mobile Phone + WiFi / GPS / 4G

6 Bands, Higher Gain Antenna

100% Waterproof Outdoor
