Product Details
| PCB-2048–E (Europe)
2G/3G/4G/5G |
PCB-2048-A (America)
2G/3G/4G/5G |
PDJ–2048 Drone
Drone GPS |
||
| 920-965MHz: 10W
GSM900 |
850-895MHz: 10W
CMDA |
WiFi 2400-2500MHz: 8W WiFi 11.b & g | ||
| 1800-1920MHz: 10W
DCS |
1800-1990MHz: 10W
DCS, PCS |
WiFi 2400-2500MHz: 8W WiFi 11.b & g | ||
| 2100-2170MHz: 10W
3G, UMTS |
2100-2170MHz: 10W
3G, UMTS |
1560-1620MHz: 10W
GPS L1 + Glonass L1 |
||
| 2400-2690MHz: 8W
WFi 2.4GHz + 4G LTE H |
2350-2700MHz: 8W
WFi 2.4GHz + 4G LTE H |
5.7-.5.9GHz 4W
WiFi 11.a |
||
| 758-825MHz: 8W
4G LTE Low |
720-805MHz: 8W
4G LTE Low |
1220-1280MHz: 10W
GPS L2 + Glonass L2 |
||
| 3400-3800MHz: 8W 5G | 617-652MHz: 10W 5G | 5.7-.5.9GHz 4W WiFi 11.a | ||
| 1450-1620MHz: 10W
5G LTE + GPS L1 + Glonass L1 |
1560-1620MHz: 10W
GPS L1 + Glonass L1 |
433MHz: 5W
Car Remote |
||
| 164MHz :5W Lojack | 173MHz :5W Lojack | 860-920MHz: 10W Car Remote | ||
| Total: 69 W | Total: 71 W | Total: 59 W | ||
| Options: GPS L2: 10W, GPS L3+ L4:8W, GPS L5: 8W | ||||
| Power supply: | AC100-240V, | |||
| Jamming Range: with Both Short and Long Antennas (100mm and 210mm) | PCB-2048 Cell phone Radius 20-50 meters (-75dBm@Omnidirectional antennas)
PDJ-2048-DJ for Drone Radius 100-300 meters |
|||
| Working time: | 60 Minutes | |||
| Weight | 3.0 Kg | |||
| Dimension: | 210 x 140 x 90mm (Main Unit only, do not include Antennas) | |||
| Warranty: | 1 year | |||

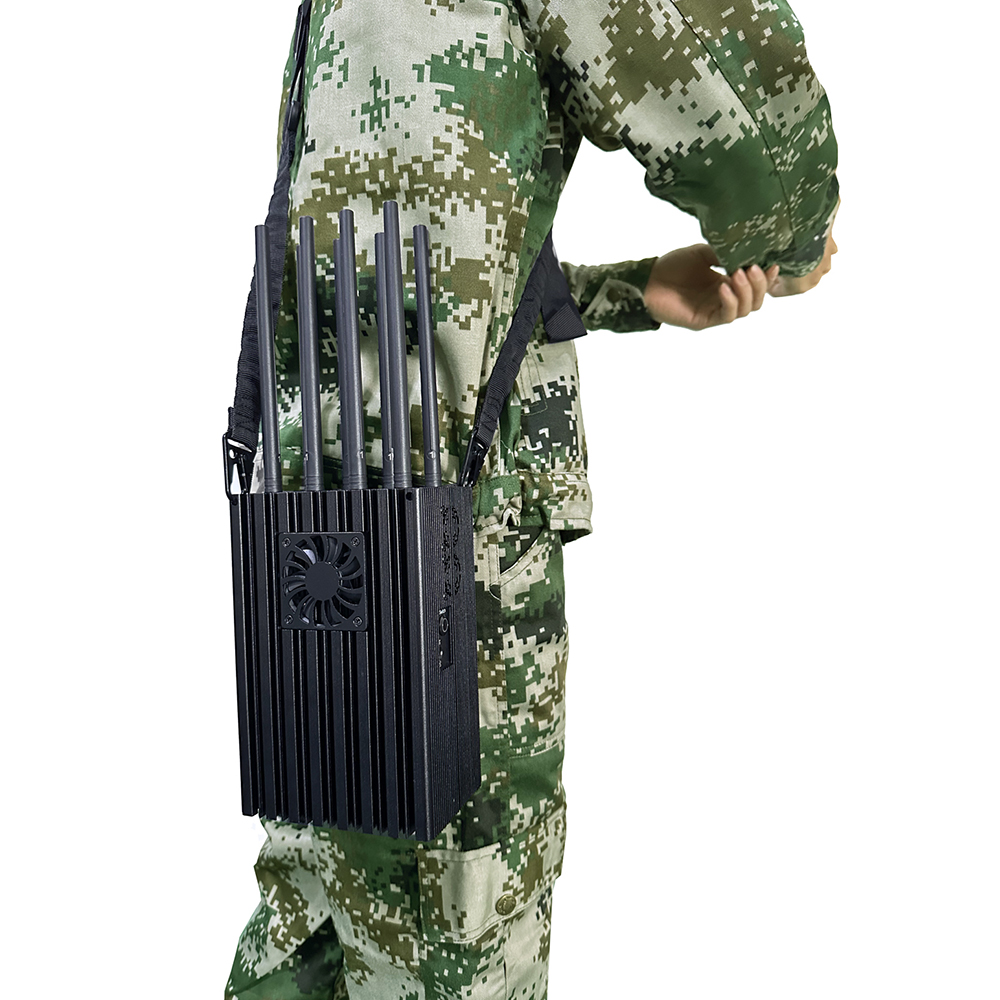

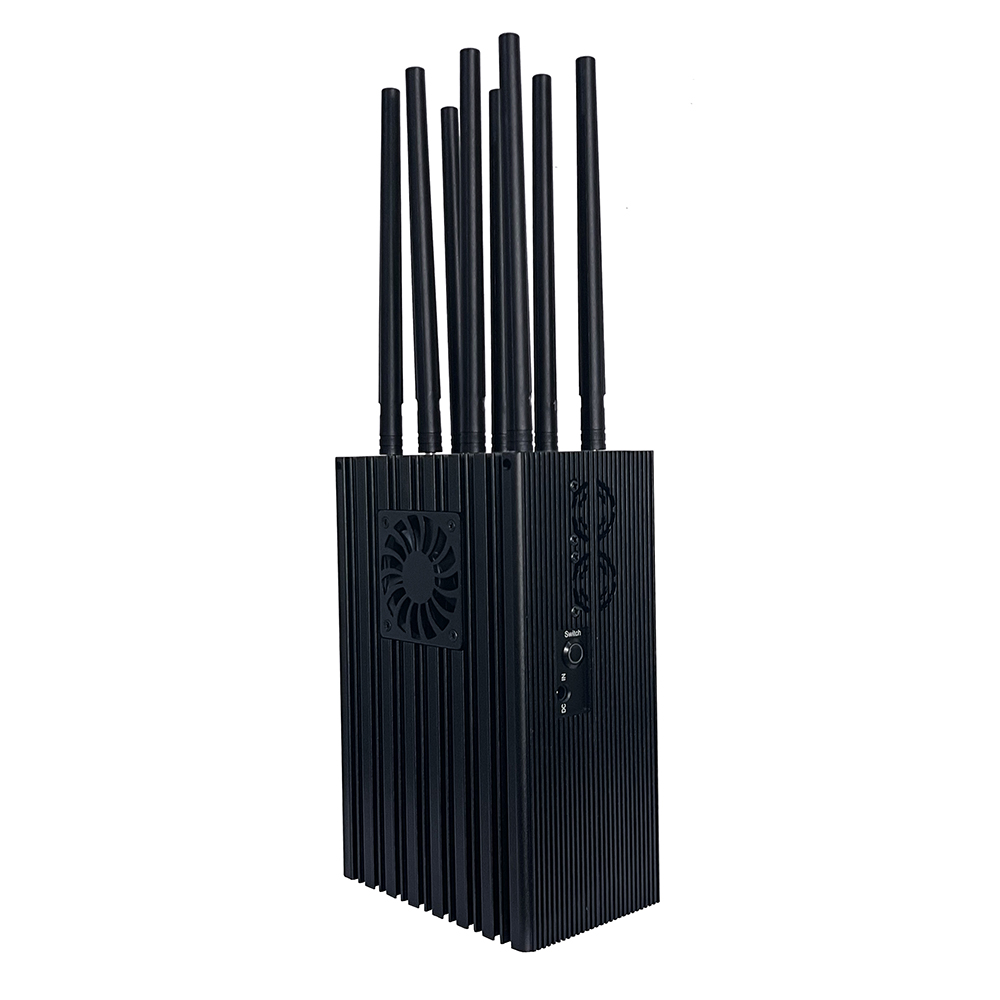

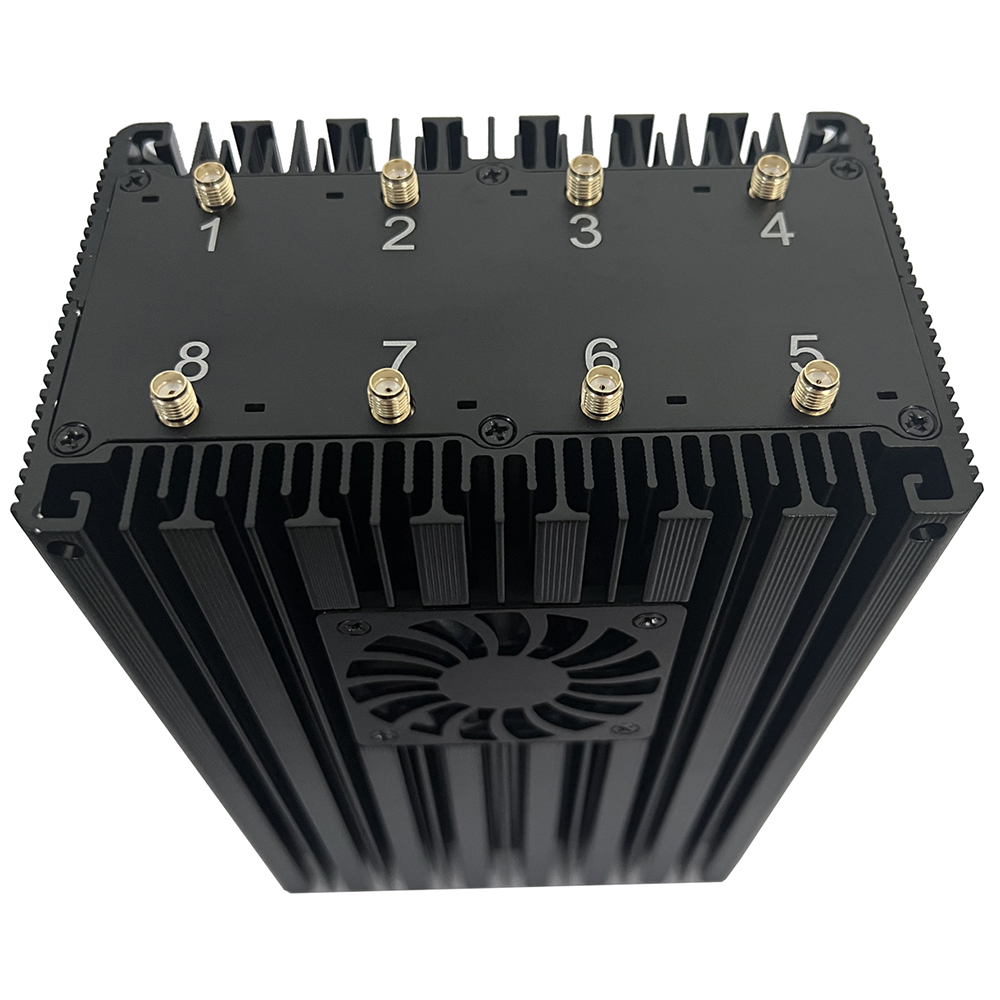

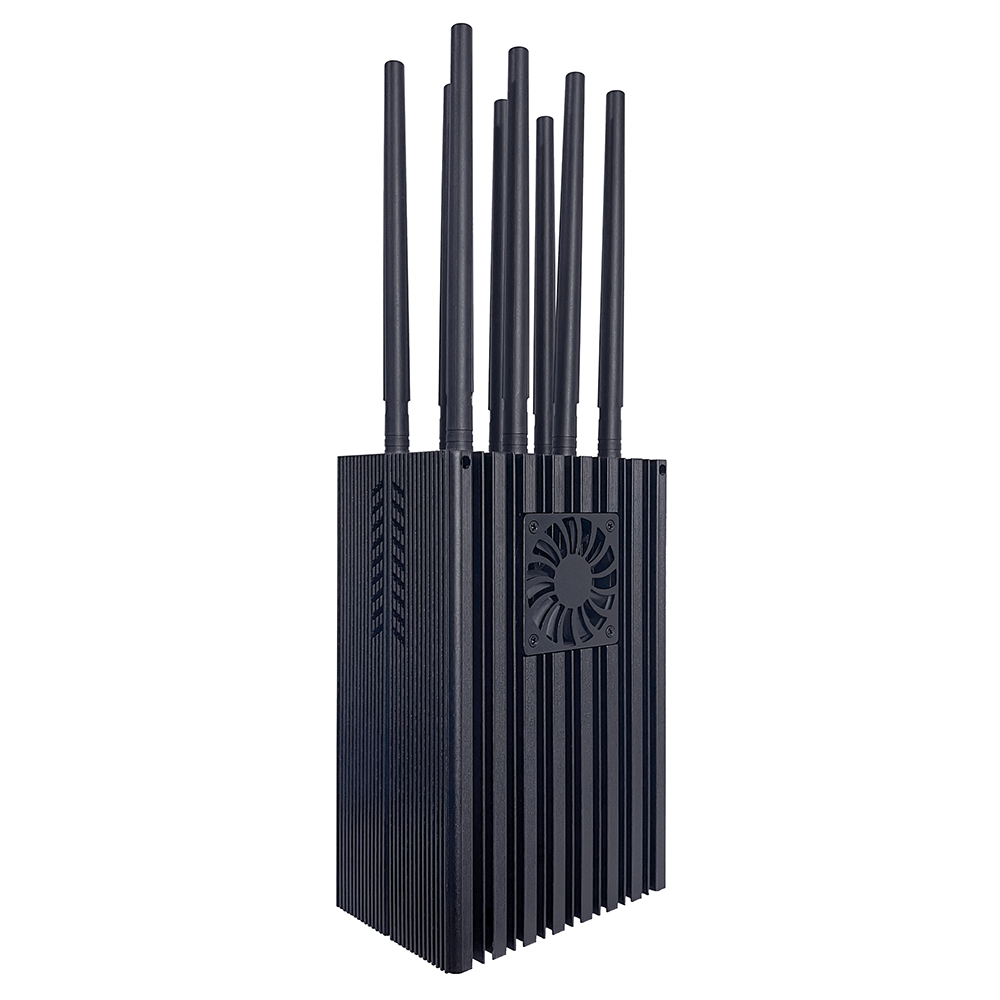

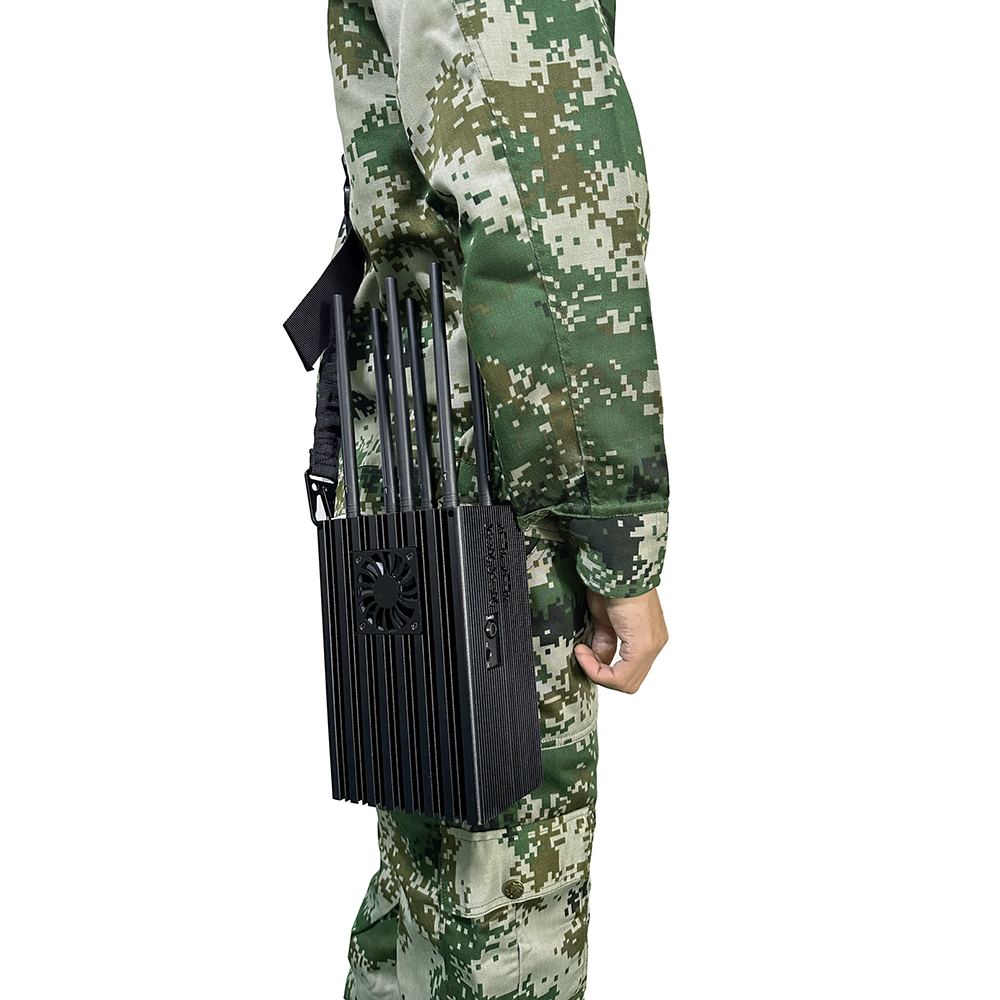

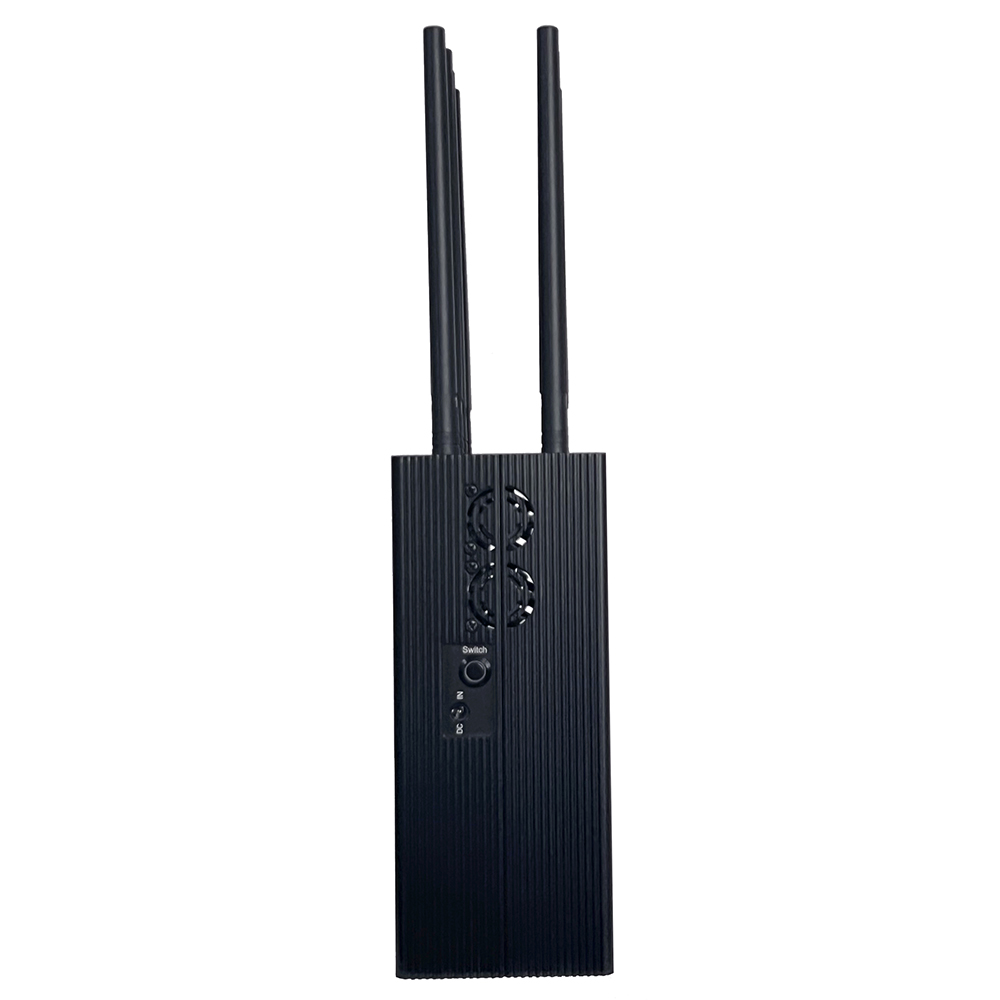

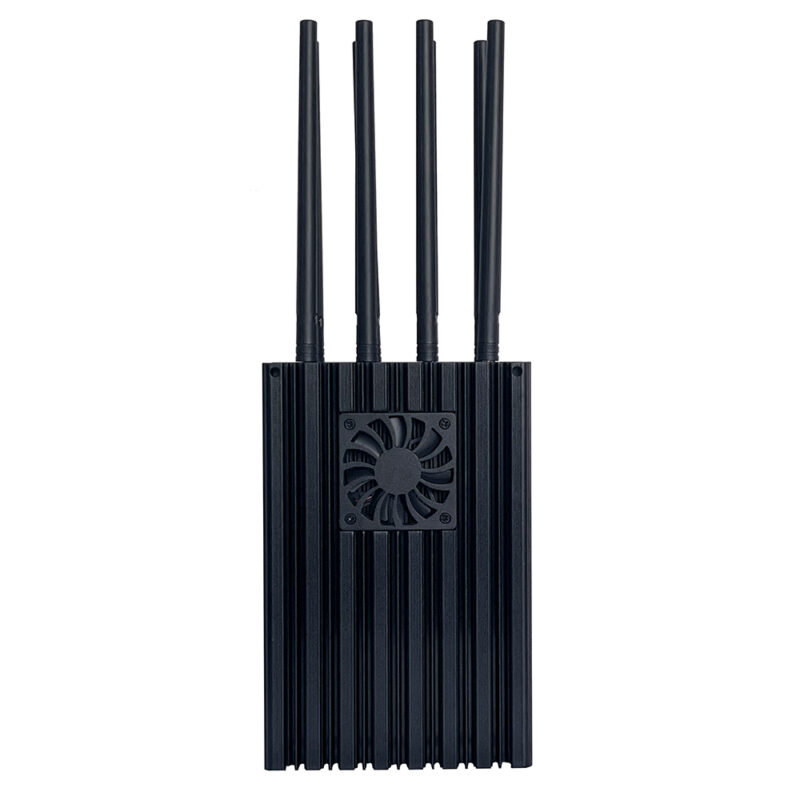

Techwise PCB-2048 New 8 Bands 69W Handheld Mobile Phone Jammer
8 Bands 8-10W Per Band
All Cell Phone 2G / 3G / 4G / 5G
State Art Aluminum
