Product Details
| PCB-4510E-5 | PCB-4510EL | PCB-4510A-5 | PCB-4510AL |
| 920-960MHz: 30W
GSM900 |
920-960MHz: 30W
GSM900 |
850-895MHz 30W
CDMA |
850-895MHz 30W
CDMA |
| 1800-1920MHz 30W
GSM 1800 |
1800-1920MHz 30W
GSM 1800 |
1920-1990MH 30W
|
1920-1990MH 30W
|
| 2100-2170MHz 30 W
3G UMTS |
2100-2170MHz 30 W
3G UMTS |
2100-2170MHz 30W
3G UMTS |
2100-2170MHz 30W
3G UMTS |
| 2570-2690MHz:25W
4G LTE High |
2570-2690MHz:25W
4G LTE High |
700-805MHz:30W
4G LTE Low |
700-805MHz:30W
4G LTE Low |
| 758-821MHz:30W
4G LTE Low |
758-821MHz:30W
4G LTE Low |
2500-2700MHz:25W
4G LTE High |
2500-2700MHz:25W
4G LTE High |
| 2300–2500MHz:25W
4G LTE + WiFi 11.b&g |
2300–2500MHz:25W
4G LTE + WiFi 11.b&g |
2300–2500MHz:25W
4G LTE + WiFi 11.b&g |
2300–2500MHz:25W
4G LTE + WiFi 11.b&g |
| 1450–1620MHz:30W
4G LTE + GPS L1 |
3400-3800MHz:10W
5G |
610-655MHz 30W
5G |
610-655MHz 30W
5G |
| 3400-3600MHz:10W
5G |
130-200MHz: 30W
VHF |
3600-3800MHz 10W
5G |
130-200MHz: 30W
VHF |
| 3600-3800MHz:10W
5G |
300-400MHz: 30W | 1570-1620MHz 30W
GPS L1 |
300-400MHz: 30W |
| 5.1-5.9GHz 15W
WiFi 11.a |
400-500MHz: 40W
UHF |
5.1-5.9GHz 15W
WiFi 11.a |
400-500MHz: 40W
UHF |
| Total : 235 W | Total : 270 W | Total : 255 W | Total : 300 W |
| Option: GPS L2 L3 L4 L5: 30W, VHF 130-200MHz: 30W, 300-400MHz: 30W, UHF 400–500MHz: 40W,
LoJack 173MHz: 40W, |
|||
| 100% Safe VSWR over protection (Isolator) for each modular | |||
| Power supply: | AC adapter (AC220V/110V-DC27V or 27V/18Amp) | ||
| Jamming Range: | 50-150 meters@－75dBm | ||
| Battery Operating Time | 1- 2 Hours (more option about battery working time) | ||
| Dimension：490 x 370 x 190 mm (H × W × D) | |||
| Weight：14 Kg (approximately) just main unit not included antenna & all accessories | |||
| Operating temperature: -20℃ ~ +60℃ | |||

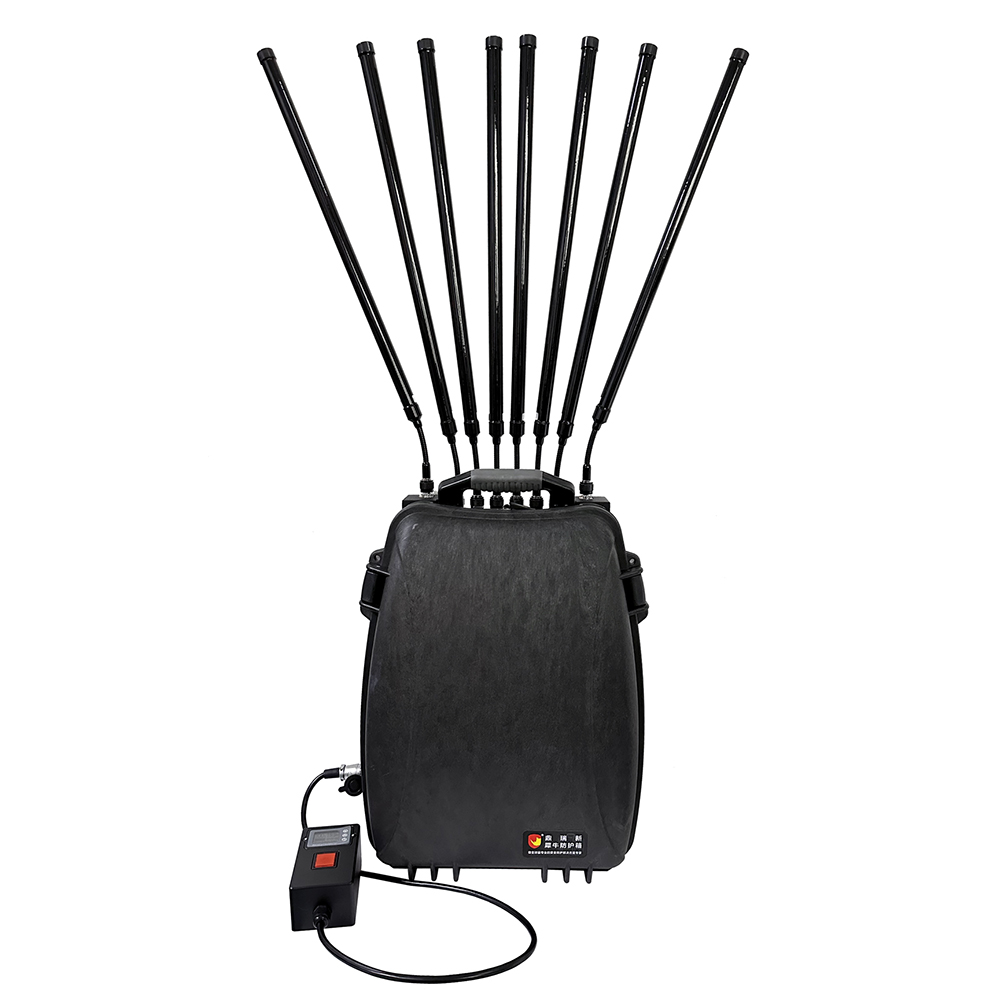

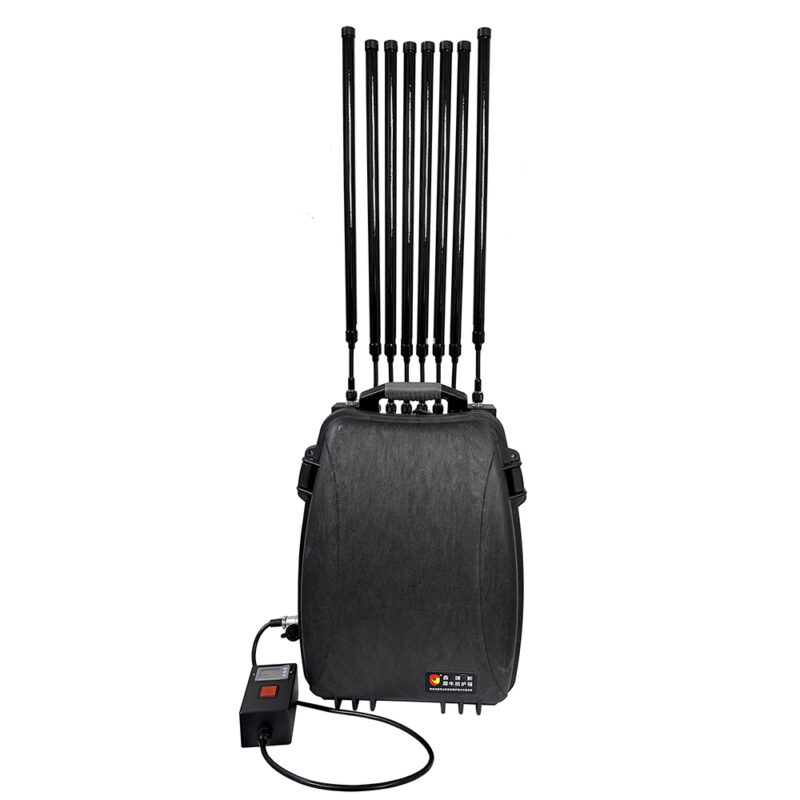

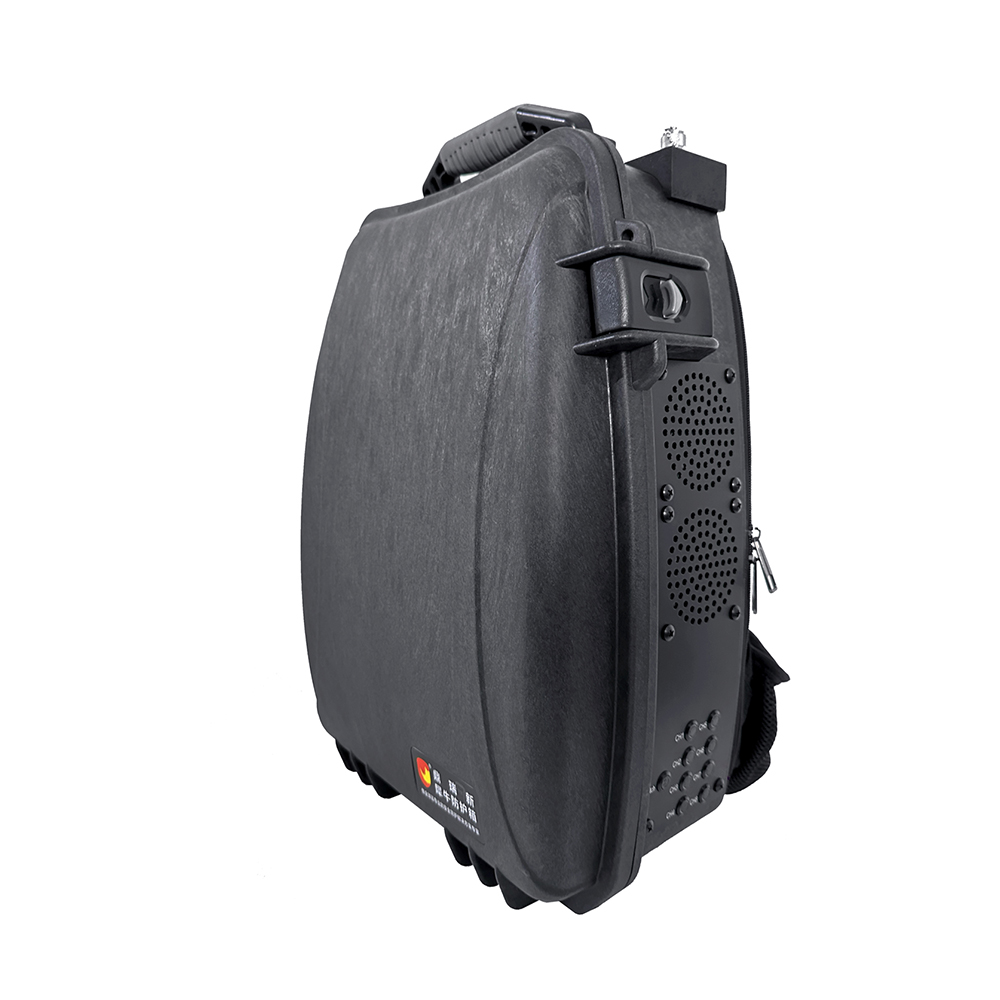

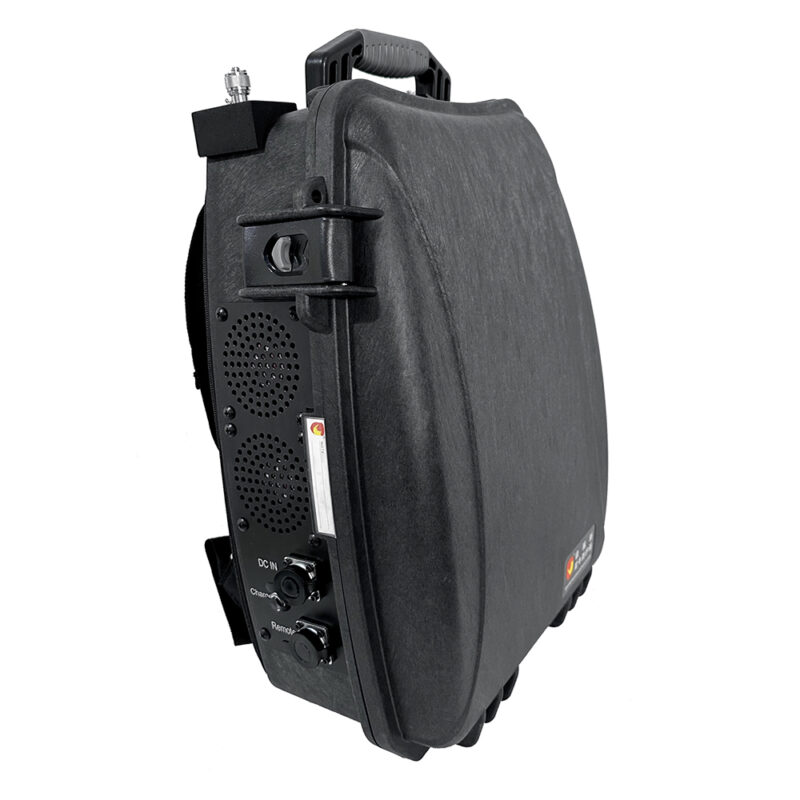

Techwise PCB-4510 10 band Man Pack Jammer
Man Pack VHF UHF Mobile Phone/WiFi/GPS L1
Max 250W, 10 Bands,
1 -2 Hours Built-in Battery
