Product Details

Especially for prisons and other large sensitive locations such as military or governmental

compounds. It can also use in Oil and Gas Storage Facilities and fields, Security Services,

Military Units, Secret Services, Museums, Border Patrol and Drug Enforcement, Customs,

etc. – Remote PC control with software to Turn each jammer, each Band or the whole jammer

system ON/OFF, VSWR Alarm in a wireless setup (RF module)

Directional antenna

Each unit offers a key lock support & mounting hardware

Advantages & Features

  1. Each unit can jam up to 3/4frequency bands simultaneously.
  2. Continuous operation even in hot climates with no time limit
  3. Design for outdoor installation.
  4. Secure design to avoid sabotage .

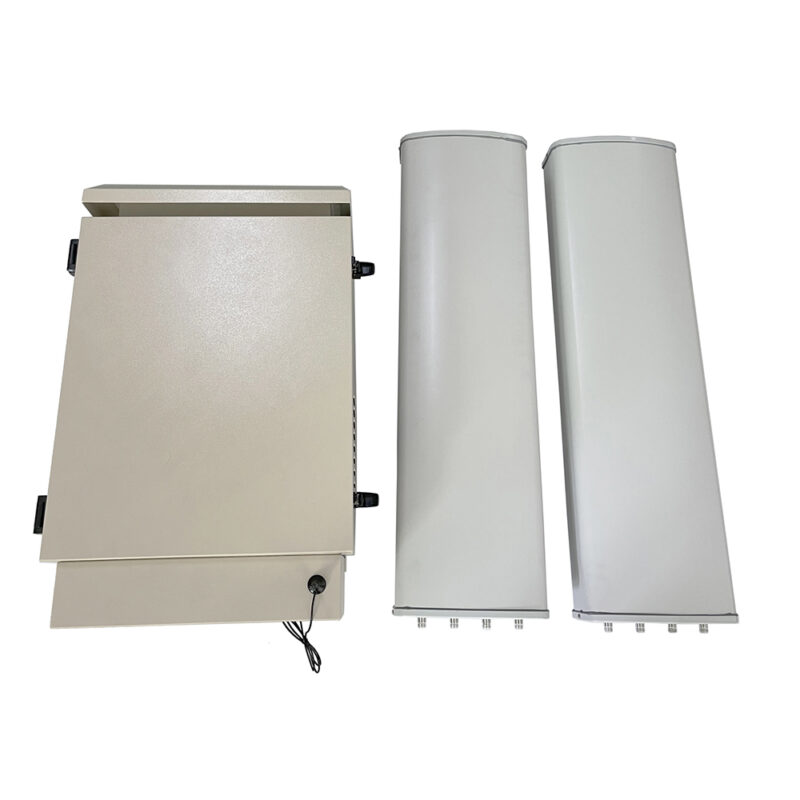

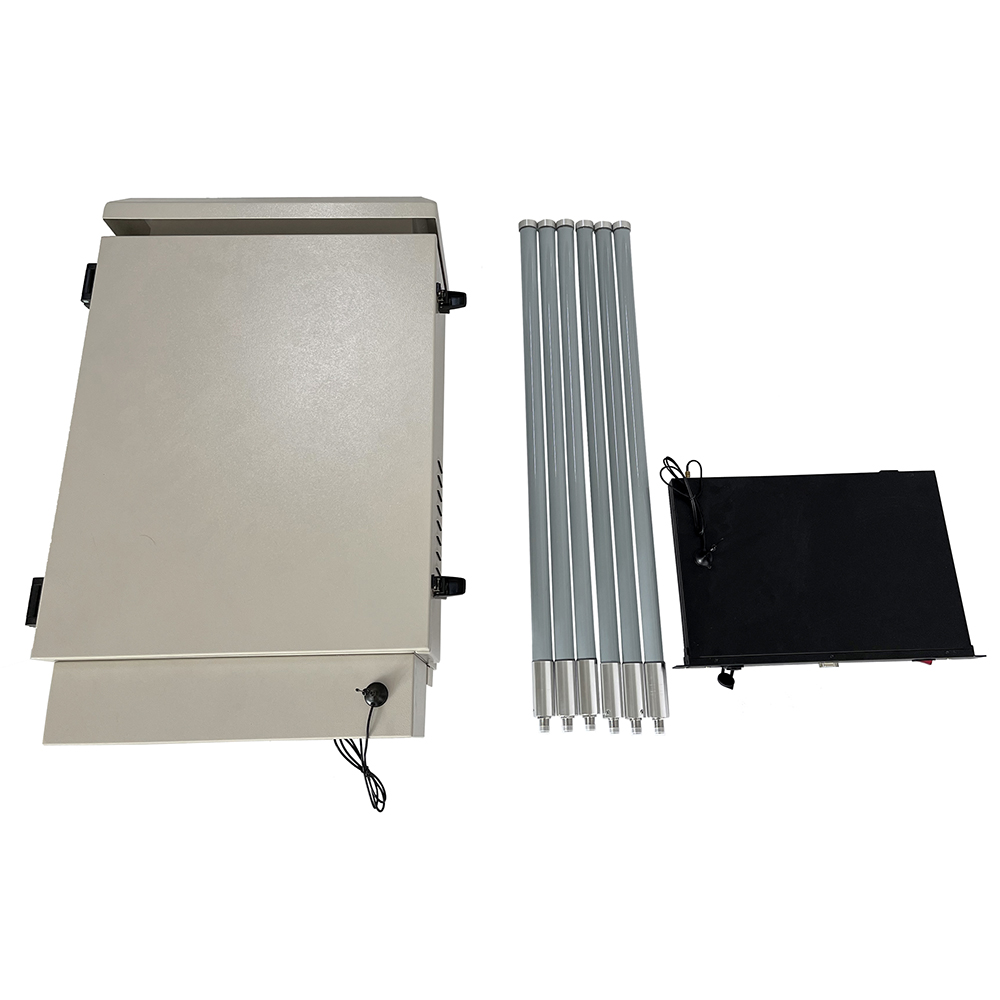

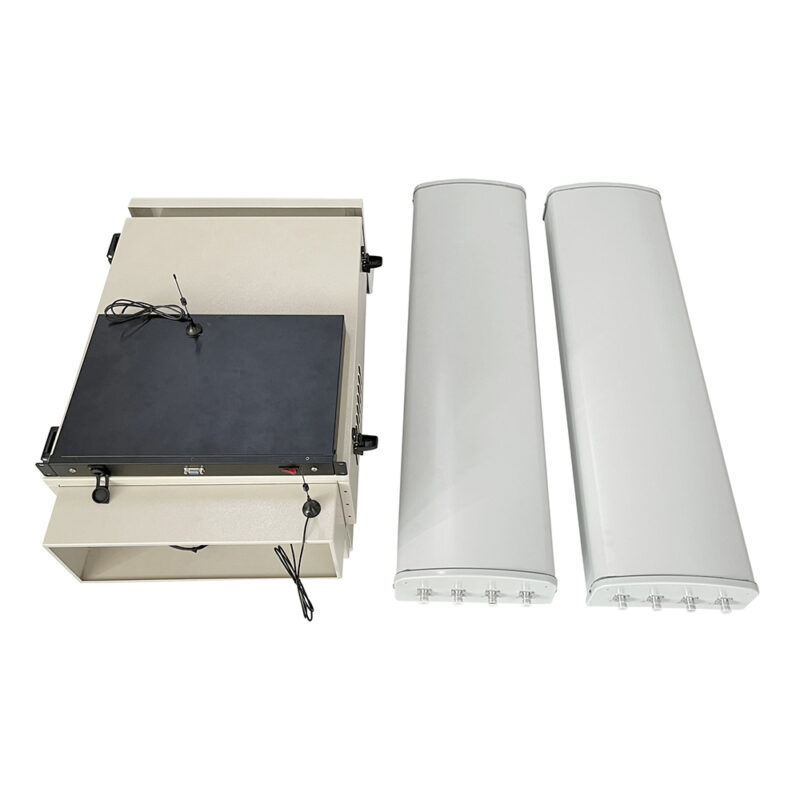

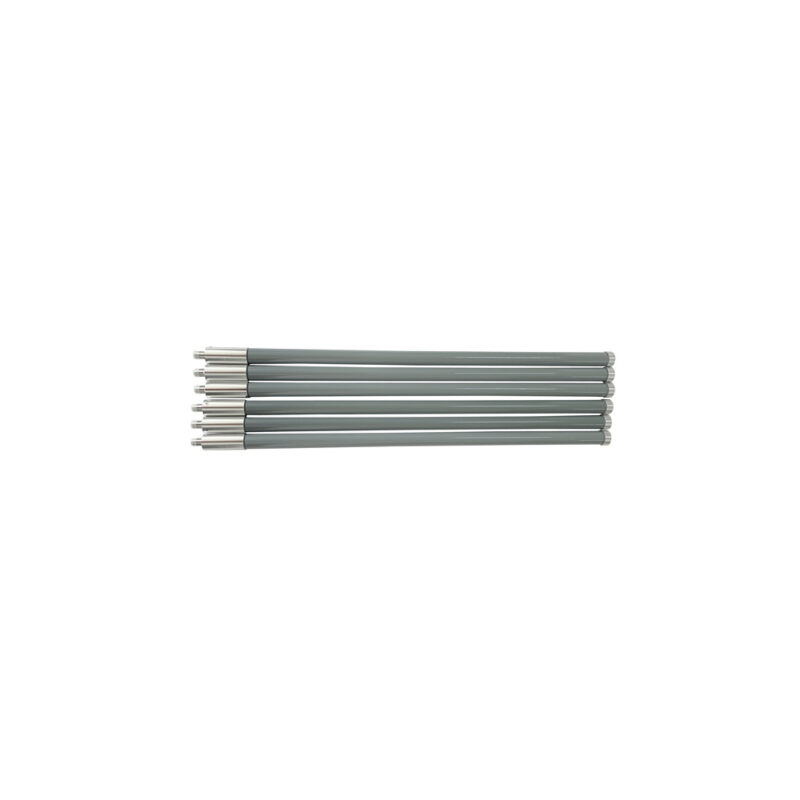

  5. Antenna type options – omni or directional antennas.
  6. Selection of antennas to provide more flexibility regarding jamming coverage.

7.. PC remote control by wireless

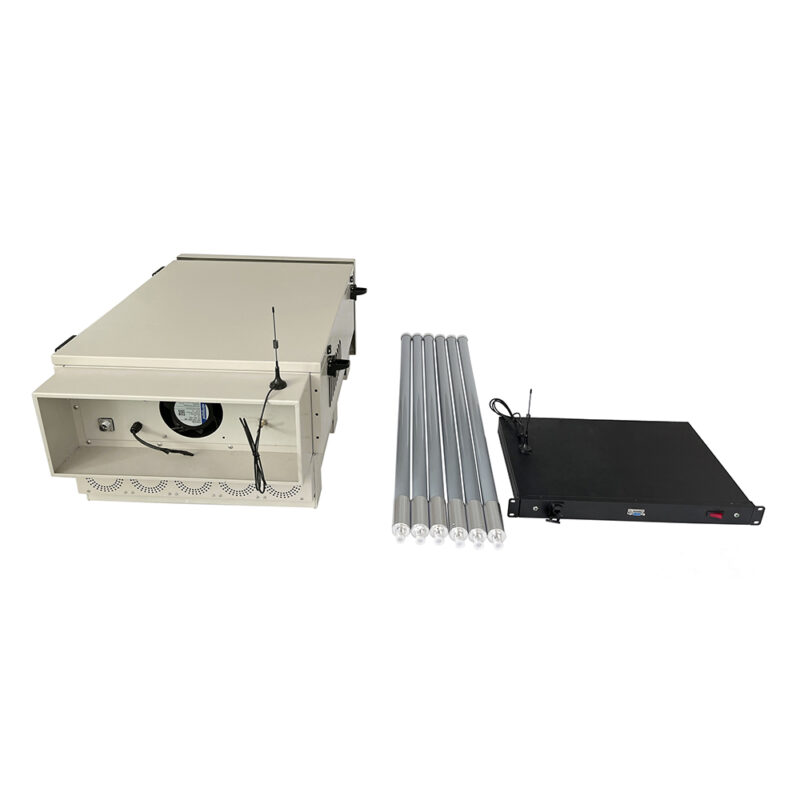

  1. Case option: 19 inch rack or normal case (see photos)

Specifications : CPB-6060: 100W each Band

Model CPB-6065 5 Bands CPB-6060 6 bands
GSM-900 925-960MHz: 100W 925-960MHz: 100W
DCS-1800 1800-1880MHz: 100W 1800-1880MHz: 100W
3G 2110-2170 MHz: 100W 2110-2170 MHz: 100W
4G High 2620-2690 MHz: 100W 2620-2690 MHz: 100W
4G Low 790-821 MHz: 100W 790-821 MHz: 100W
WiFi 2.4GHz N/A 2400-2500MHz:100W
Total RF Output 500W 600W
Option: 5GHz 20W, GPS L1 1575MHz:100W
Power Supply AC220V/ 110V DC27-28V
Power consumption 100/200Watts
Jamming Range 200-600M based on back ground signal strength<=-75dBm
Operation 24 hrs / 7 days a week
Dimension 72 x 45 x 32 cm
Weight 42 Kg.
RF Range (Adjustable) 50- 400 meters
Product Installation


UL (E190582) CSA (LR 112971 Level 3)

Digital Control System: Jail Jammer System Software

1) Each unit have a control I/O Board (RF module) with hard relays (for alarm trigger) via wireless output for 2-8 data transmission to control of all functions of each unit.- to be controlled via software program on remote PC workstation by wireless

2) Each Unit be able to send Alert to the remote control PC workstation by wireless, if any of the RF frequency bands fails individually from each of the units (VSWR Alarm: Antennas Lost Connection, Module Failure)

3) All units have individual digital ID to identify them through the PC workstation.

4) The wireless data will travel to converter in main office and then convert to RS232 so it can then communicates with a PC workstation computer.

5) The software can Turn On/Off, each band, each jammer or the whole jammer system

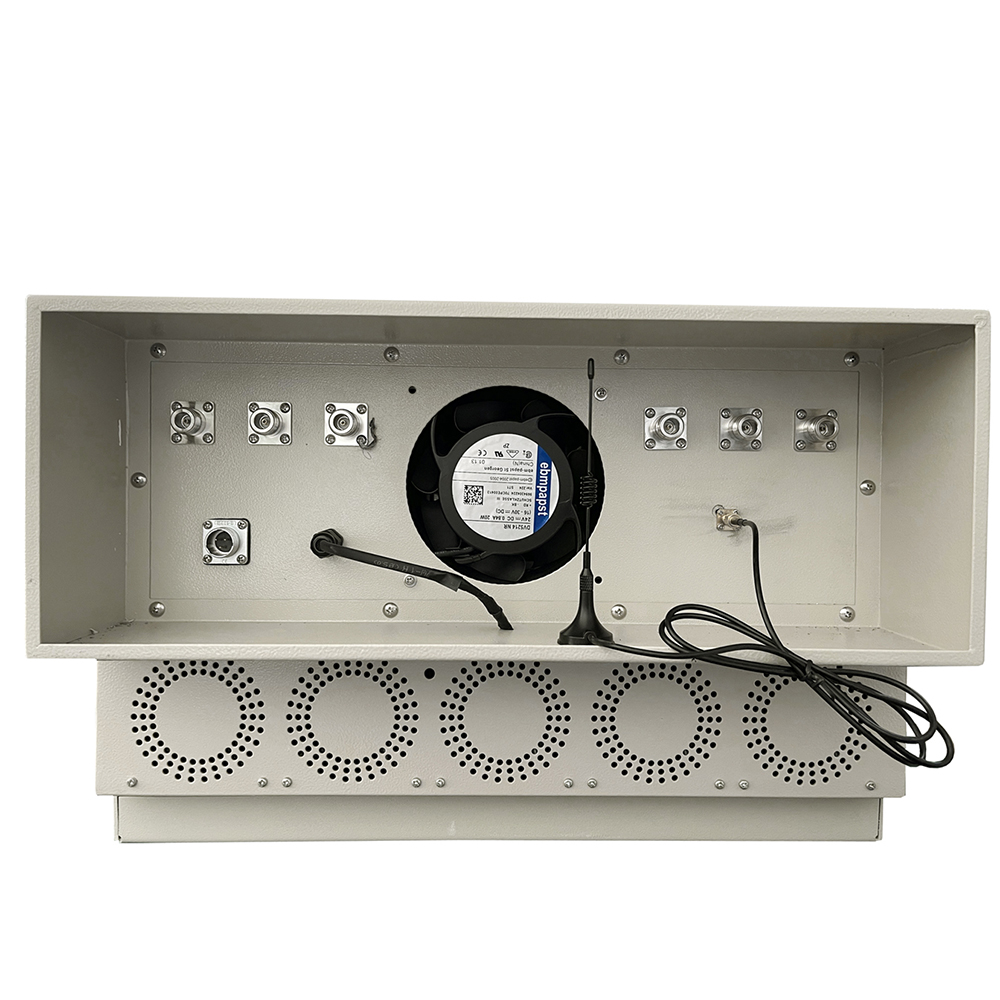

6) Jammer Unit housing unit is waterproof and heat sink


UPS system

UPS + battery (Two 12V batteries, normal trunk battery and it can buy locally). When you use UPS system +One or Two 12V batteries, you can charge the battery and turn on the jammer at the same time. When the power is down, the UPS system can let the jammer system on 2-3 hours depends on the capacity of the battery (see all photos).
